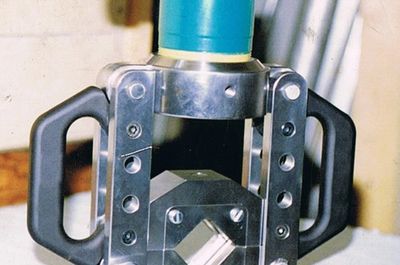

Lightweight 4 Piece Press

For use with 4 piece dies to compress joint ferrules and termination stalks onto copper cable conductors up to 1000 sq.mm. This hydraulic press is constructed form high grade steel to give minimum weight for the duty required, with the 2 aluminium handles for ease of use. Removal of a quick release pin enables the press to be assembled around the cable and to be removed after use.

All hydraulic connections are self sealing to minimize fluid loss.

Options include single or double acting 23 tonnes force hydraulic cylinders, a choice of hand or electric pumps and a choice of hose length to suit use.

Dimensions (with ram):

Length: 315mm, width 120mm

Height: 350mm, weigth: 18.0kg
