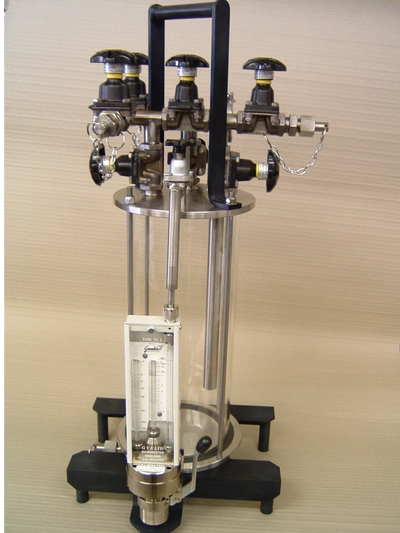

132kV Impregnation Bottle

For testing and impregnation of fluid filled cable joints and terminations on systems up to and including 132kV. The unit is manufactured from stainless steel for high vacuum performance, incorporating an aluminium handle and an increased base area for transportation and stability.

The McLeod type vacuum gauge fitted allows accurate vacuum measurement during evacuation, pressure rise testing and filling of accessories.

Other equipment required includes a suitable vacuum pump and connection hoses.

Can also be fitted with digital gauge to replace GVE gauge if required.

Dimensions:

Length: 290mm, width: 330mm

Height: 750mm, weight: 14.0kg
