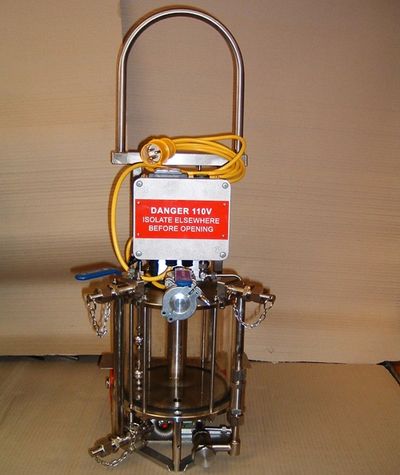

Automatic Draining Bottle

For the automatic discharge of seepage during impregnation of fluid filled cable joints/termination. This unit is of welded construction in stainless steel, giving high vacuum integrity and low maintenance. The pump is controlled by a stainless floatswitch and discharges through a non-return valve.

The unit draws off seepage from an accessory during the evacuation stage, and automatically pumps to a waste barrel etc., making it possible to leave an accessory virtually unattended during the impregnation period.

Options include 110V or 240V operation.

Other equipment required includes suitable vacuum pump, and connection hoses.

Dimensions:

Length: 380mm, Width: 330mm

Height: 630mm, Weight: 40.0kg
